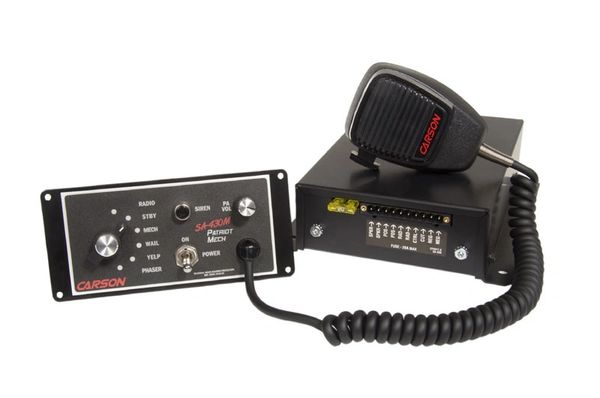

Carson SA-430M


The features of this siren are easily selected at installation using an internal DIP switch. The SA-430M Patriot Mechanical siren is designed to power one or two 100-watt siren speakers and includes external fusing, short circuit, high voltage and reverse polarity protection systems. A detachable wiring connector and optional mounting bracket for the PA microphone are also included. As with all Carson Sirens products, the SA-430M Patriot Mechanical is backed by a no-hassle 5 year limited warranty.

  • 100/200-watt electronic siren amplifier.
  • Single 22 AWG serial control data line connecting the control head and amplifier.
  • Siren Mechanical, Wail, Yelp, Phaser, Manual and “Stutter” Air Horn tones with optional Two Tone.
  • Six position rotary switch with a momentary push-button override.
  • Carson Air Horn with replica “Stutter” sound.
  • PA override with attached noise-canceling microphone and large PA volume control knob.
  • LED backlighting.
  • Horn Ring Cycler 2 (HRC2) for hands free siren tone control.
  • DIP switch programmable.
  • External fusing.
  • Short circuit, high voltage and reverse polarity protection systems.
  • Detachable wiring connector.
  • Mounting brackets for the PA microphone.
  • Control Head: 2-7/8″ H x 6-1/4″ W x 1″ D.
  • Amplifier: 2-1/8″ H x 8″ W x 6-3/4″ D.
  • No-hassle 5-year limited warranty.
